Working Pressure: 100-1000 bar
Drive Type: Fluid Reaction Drive
Cleaning Diameter: 2-4 meters
Maximum Temperature: 90°C
Minimum Opening Size: Ø165mm
Flow Rate: 15-500 L/min
Connection: Rc1/2-14 internal thread (other connection methods available)
Weight: 5.7 kg
Principle

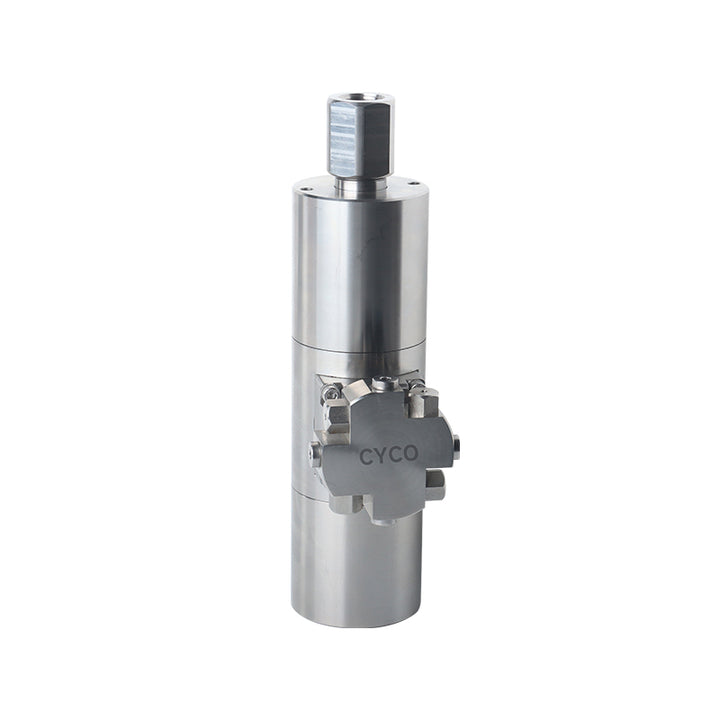

The CYR-500-HP high-pressure three-dimensional rotary cleaning nozzle uses a fluid-driven nozzle. The reaction force of the high-pressure water jet drives the nozzle rotation. The nozzle base and nozzle ring are meshed via bevel gears, driving the nozzle ring's rotation, creating two perpendicular degrees of freedom. This allows the nozzle to both orbit and rotate, creating a 360-degree spherical cleaning curve.
Application
This product is primarily used in tanks, reactors, drying towers, and other vessels with high fouling adhesion.
Features
1. Unique pressure relief seal technology prevents transient water hammer.
2. Pulsating pressure buffering technology prevents seal fatigue damage. 3. A unique clutch-type friction transmission mechanism provides effective overload protection for the nozzle.
4. A unique streamlined, straightening, and focusing nozzle design ensures effective long-range impact.
5. A low-torque speed limiter ensures smooth nozzle rotation and prevents jamming.
6. A unique gear return mechanism ensures the nozzle automatically returns to its vertical position, facilitating passage of long nozzles through tank openings.
7. Finely divided gear indexing provides up to 1024 cleaning paths, enabling overlapping paths and zero-blind cleaning.
