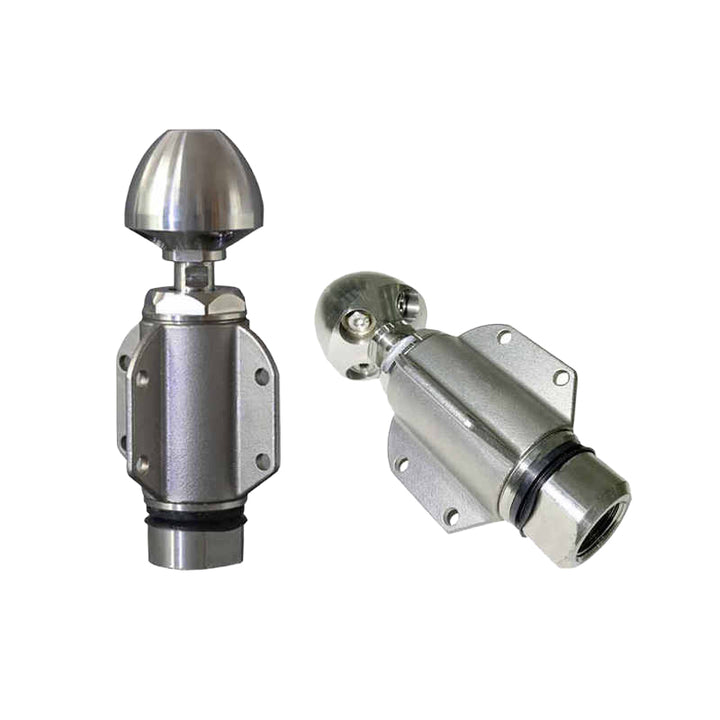

Drive Type: High-pressure water jet drives the main body forward/nozzle rotates
Weight: Approximately 1.65 kg
Cleaning Method: Forward-facing rotary cutting
Cleaning Range: Pipe ID Ø100-Ø800 mm
Number of Nozzles: 1 front, 4 rear
Connection Thread: Rc3/4-14 or G1/2 (customizable)
Flow Rate: ≥40 L/min
Pressure Range: 50-250 bar
Features
1. Powerful Rotary Impact for Deep Cleaning
The nozzle rotates at high speed under high-pressure water (usually without external power). Through multiple rear and side nozzles, the water flow is concentrated into a spiral jet, penetrating deep into the pipe wall.
Effective in removing stubborn contaminants such as scale, grease, rust, and sediment.
2. Designed specifically for pipe interiors, highly adaptable
Compact design and compact size make it suitable for cleaning pipes of various configurations, including straight, curved, and branch pipes.
Wide cleaning diameter range: Pipe ID Ø100-Ø800mm
3. Multiple nozzle angles ensure comprehensive cleaning.
Rear nozzle: Provides propulsion, combining drag and cleaning functions.
Side nozzle (typically 15°-45°): Focuses impact on the pipe wall.
Front nozzle (optional): Clears blockages at the front end of the pipe.
4. High-pressure, durable, and made of high-quality materials.
Usually manufactured with a stainless steel nozzle and ceramic core insert, it can withstand pressures of 50-250 bar.
Wear-resistant and corrosion-resistant, it is suitable for high-frequency industrial cleaning tasks.
