Design Features

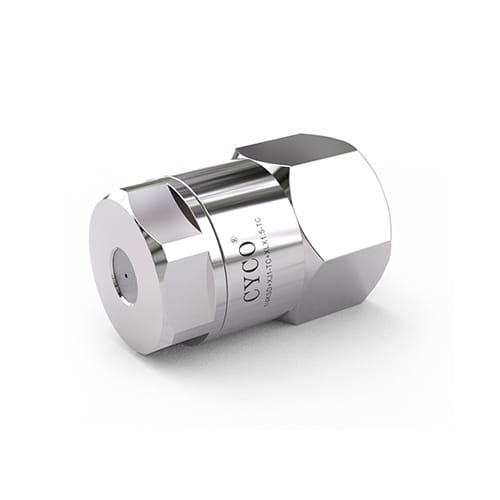

Large orifice nozzles produce larger droplets for high flow rate demand applications
Unique swirl chamber design ensures optimal performance of spray drying nozzles, ensuring even droplet distribution and uniform droplet size with minimal product waste.
Pressures up to 5000 psi (340 bar) – swirl chamber secured to orifice insert using stainless steel locking screws, flow rates up to 3019 gph (11,340 L/h).
Swirl chamber type options
Sloped bottom design minimizes erosion of the swirl chamber bottom by reducing the “drilling” effect of fluid rotation in the swirl chamber, extending wear life.
Flat bottom design with large channels reduces clogging and downtime.
Durable construction
Nozzle body is made of 303 stainless steel, swirl chamber is made of tungsten carbide, and orifice insert is made of carbide alloy. Swirl chambers and orifices are available in other materials upon request.
Spray Angle
19° to 104° at 1000 psi (70 bar)
Applications
Soaps and Detergents, Dyes and Pigments, Coffee and Tea, Plastics and Resins, Biochemicals, Fertilizers & Pesticides, Pharmaceuticals, Dairy
